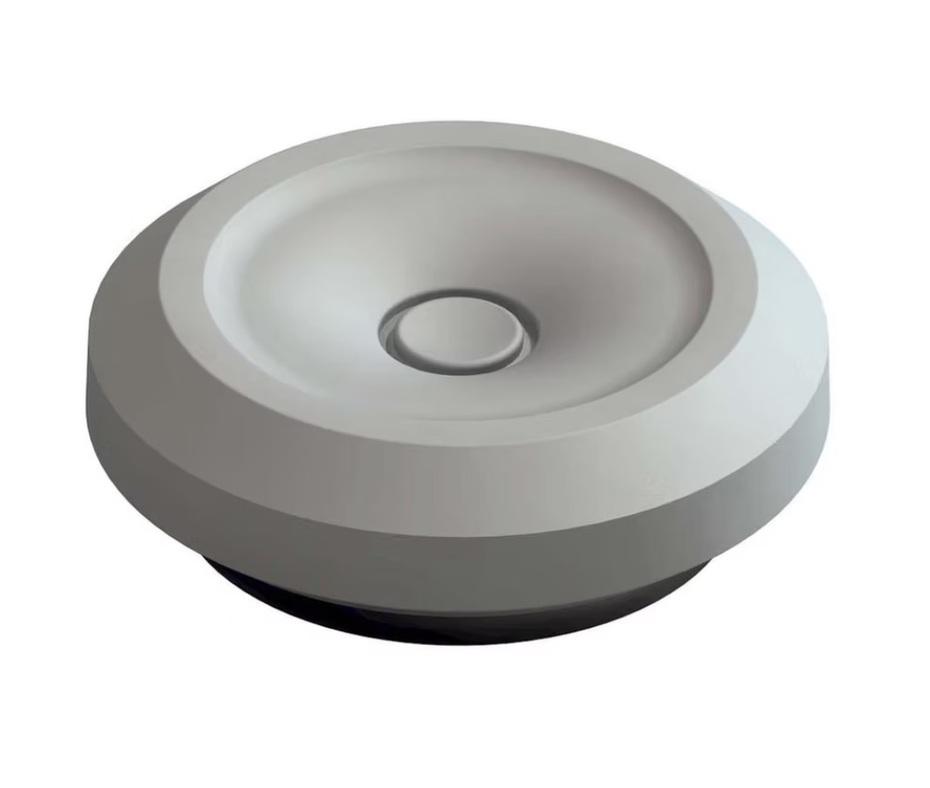

TSS Metric cable grommet, M16, IP67, Ø5–10 mm, RAL 7035
Code:T_14 757 11
TSS Metric cable grommet, M16, IP67, Ø5–10 mm, RAL 7035
Code:T_14 757 11
- Quick and simple assembly without the use of tools
- Handles exceptionally large cable span
- An end-plug for all applications
| Series | TSS Metric |
|---|---|
| Size | М16 |
| For cable/ pipe Ø mm | 5 - 10 |

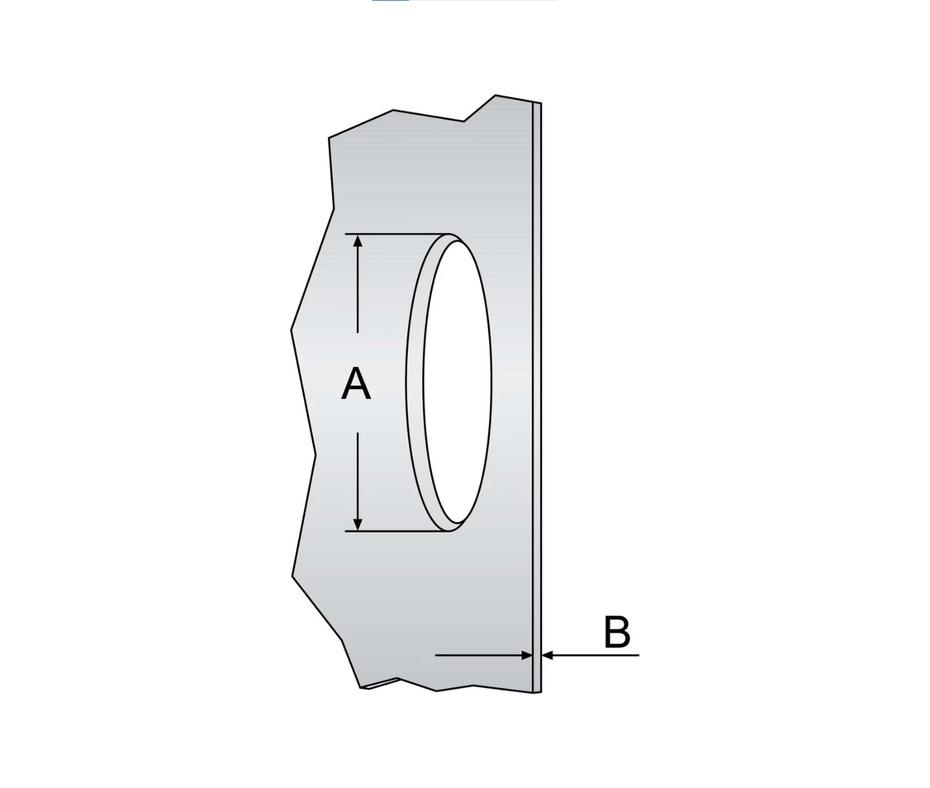

| А, мм | 16,5 |
| В, мм | 0,5 - 3 |

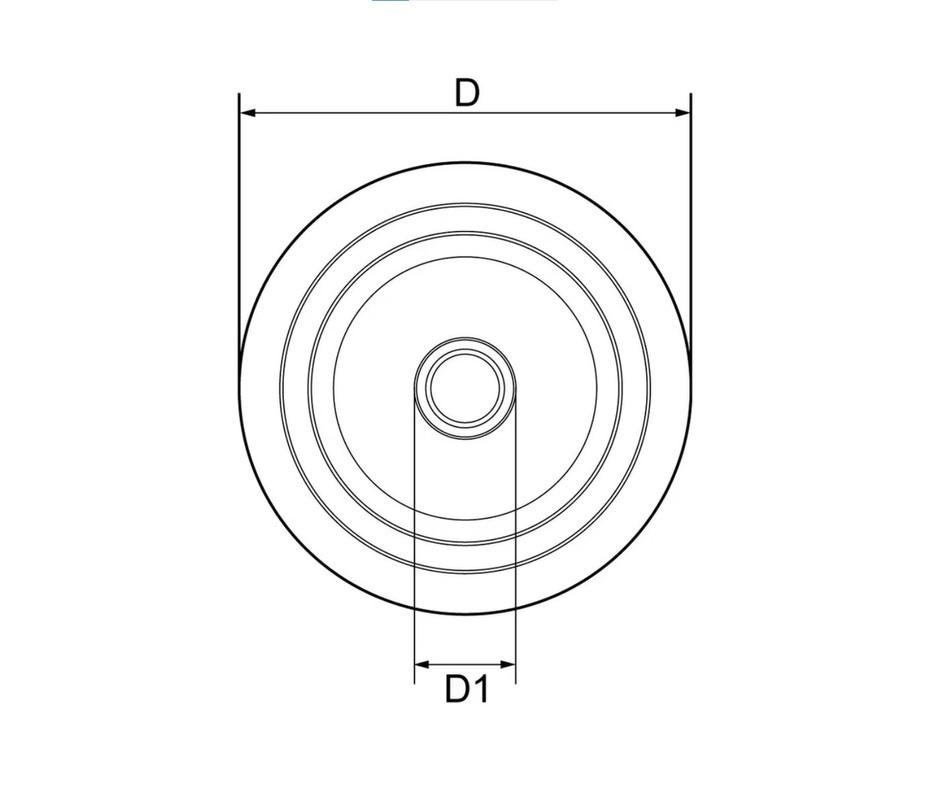

| D1, мм |
23,5 *Varies depending on the thickness of material installed in.
|
| D1, мм | 4 |
| Н, мм | 11 |
| Н1, мм | 4 |
| Н2, мм |
6,75 *Varies depending on the thickness of material installed in.
|
| Color |
RAL 7035 *Light Grey
|
| Cable gland | TPE — Thermoplastic Elastomer |
| Material Property | Halogen Free; UL listed material |
| IP Protection Rating | IP67 |
| Maximum operating temperature | −50…+125 °C |
| Complies with product certification requirements | EN60670-1:2005+A1:2013 |
| Звіт SEMKO | 1619637 |
