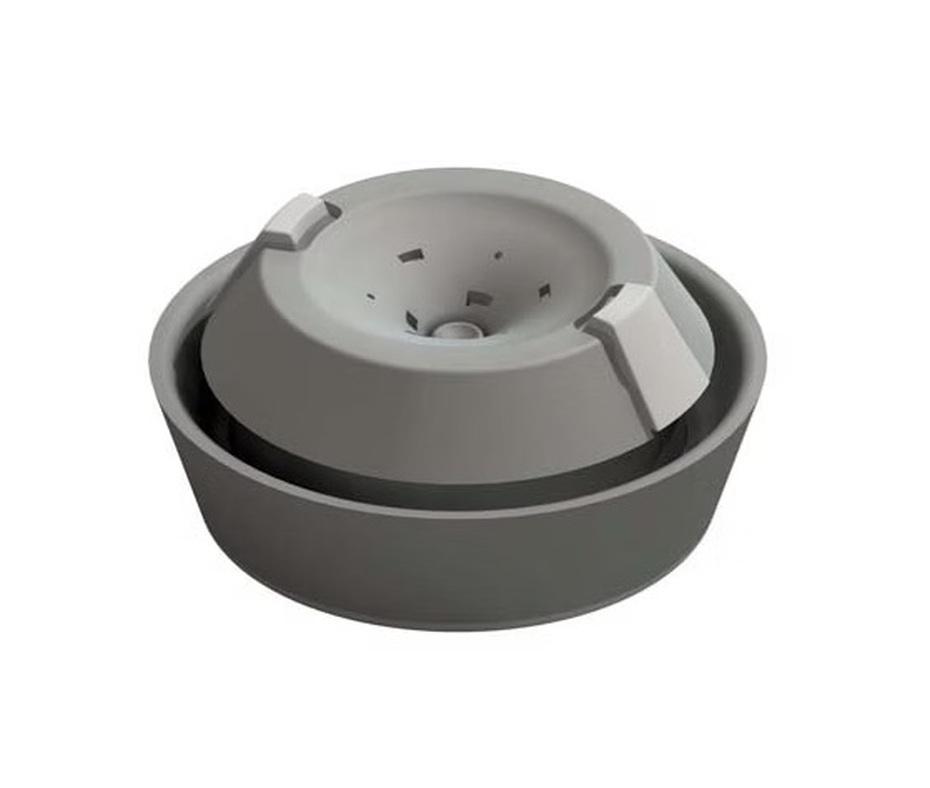

Two-component cable grommet TKS KLIKSEAL, M20, IP65, Ø7–11 mm, RAL 7035
Code:T_14 758 03
Two-component cable grommet TKS KLIKSEAL, M20, IP65, Ø7–11 mm, RAL 7035
Code:T_14 758 03
- Integrated cable anchorage
- Fixed in both directions when mounted
- Space saving design•
- Very quick and simple installation without the use of tools
| Series | KLIKSEAL |
|---|---|
| Size | М20 |
| IP65 and Cable Ancho rage Type A* for Cable Ø, mm |
7 - 11 *Cable Anchorage Type A, according to EN 50262 укр і рос
|

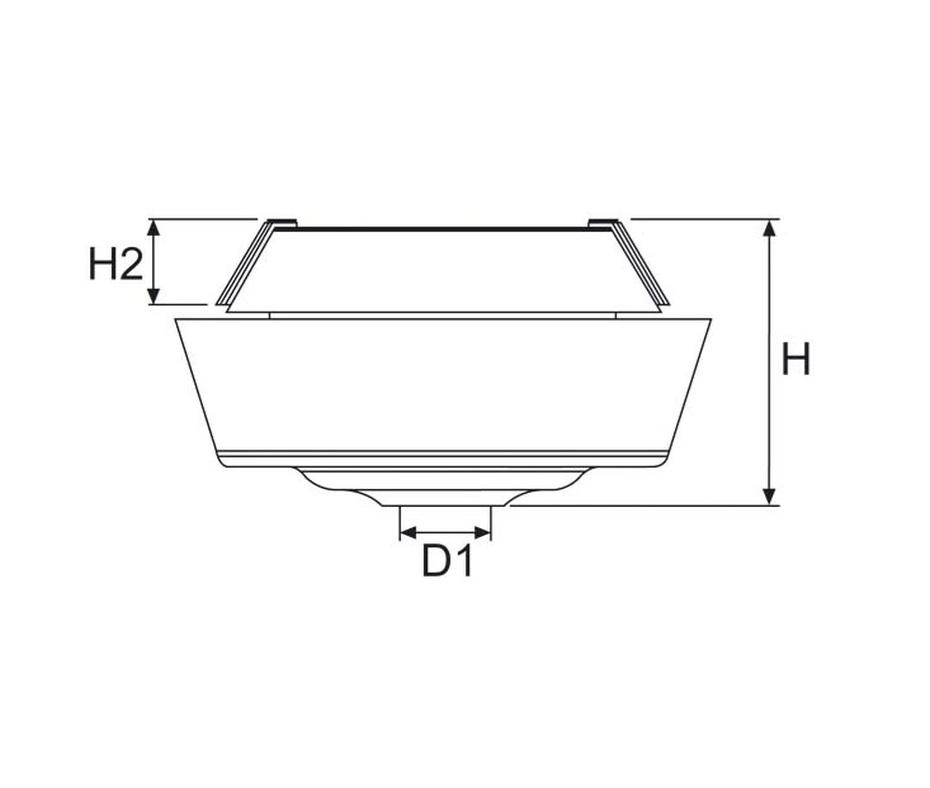

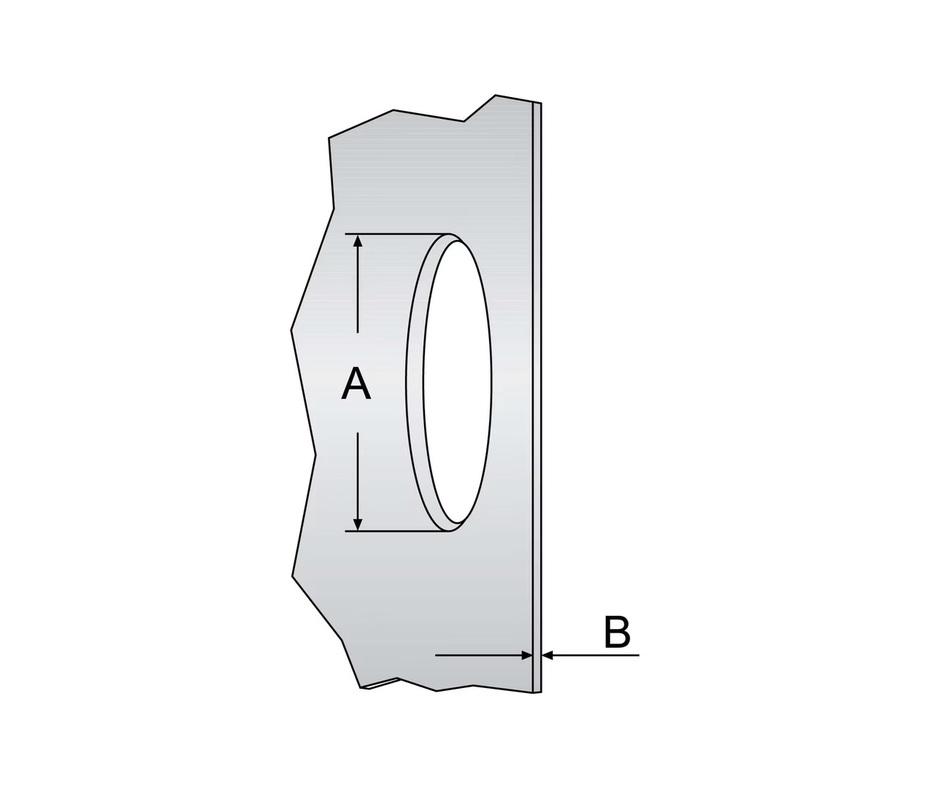

| А, мм | 20,5 |
| B for IP65, mm | 2 - 5 |
| Н, мм | 17 - 20 |
| Н2, мм | 5,5 |
| D1, мм | 4,0 |

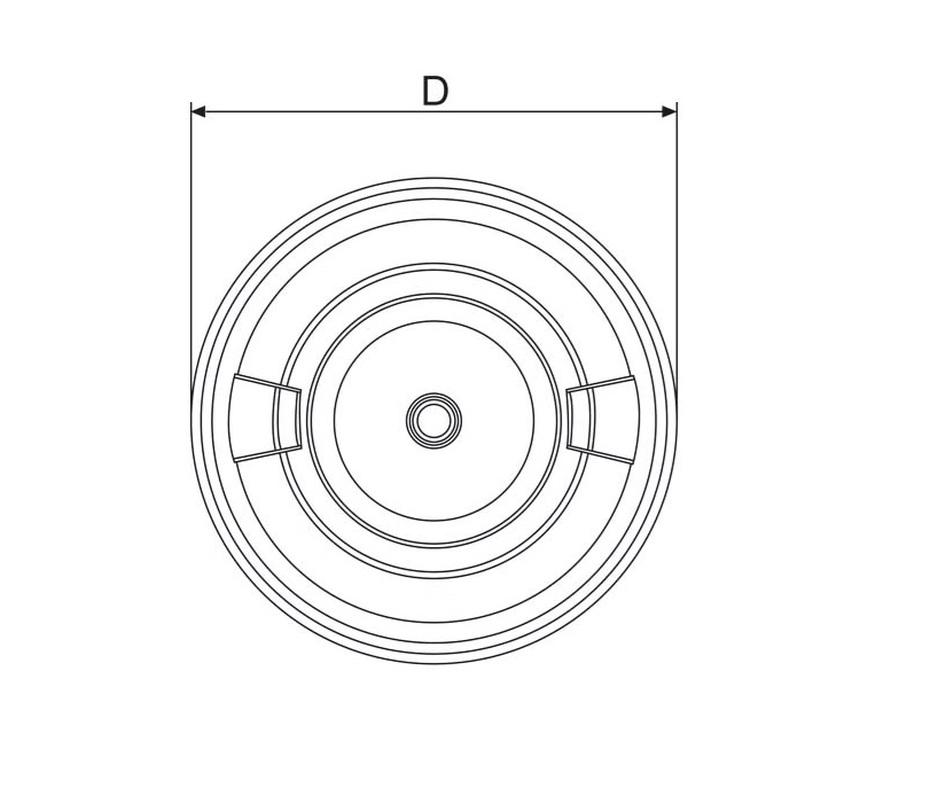

| D1, мм |
29,3 - 34,5 *Varies depending on the thickness of material installed in.
|
| Color |
RAL 7035 *Grey
|
| Cable gland | TPE + Polyamide 66 |
| Material Property | Halogen Free; UL listed material |
| IP Protection Rating | IP65 |
| Maximum operating temperature | −20…+125 °C |
| Complies with product certification requirements | EN60670-1:2005+A1:2013 |
| Звіт SEMKO | 1915682 |
