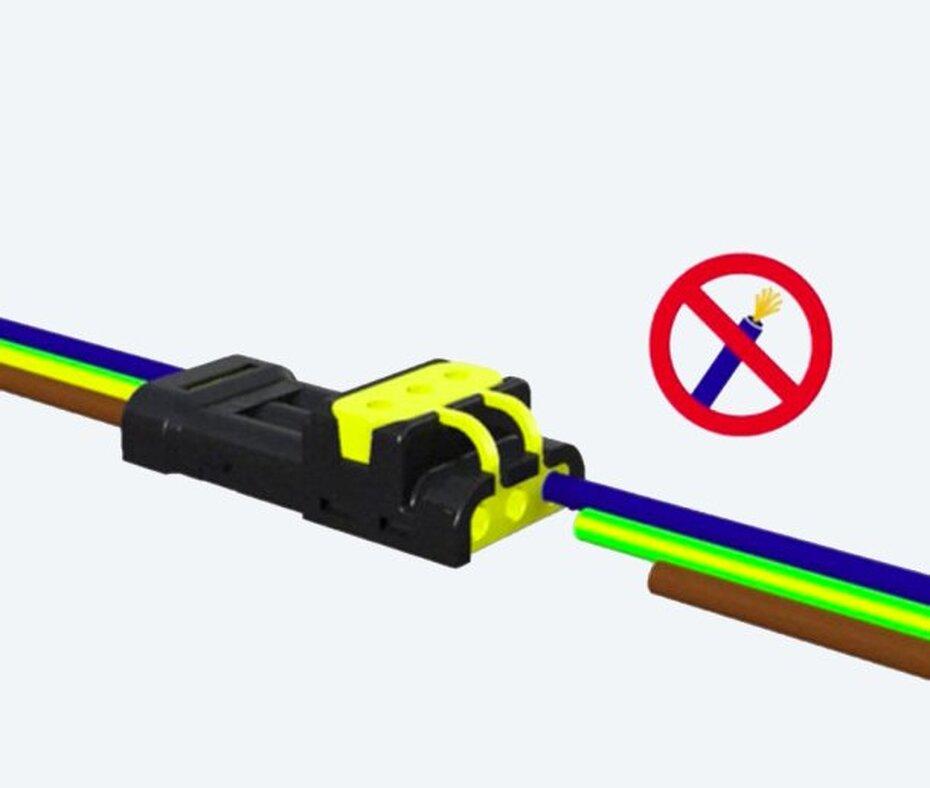

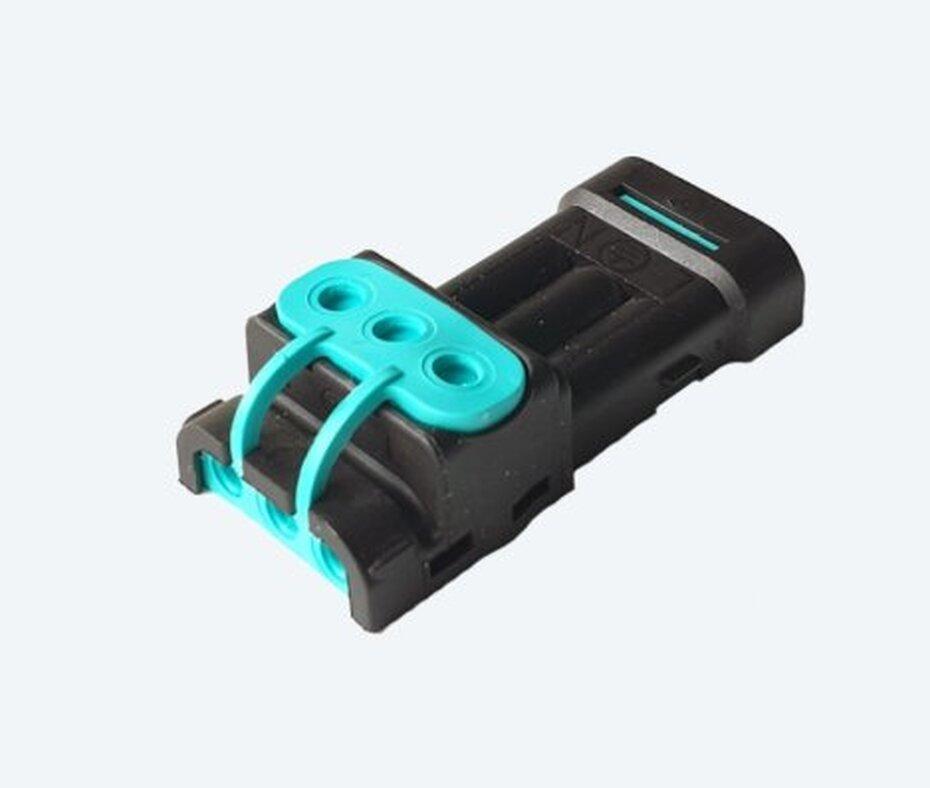

Junction connector 3p Piercing - Crimp IP54
Code:THP.112.A3A
Junction connector 3p Piercing - Crimp IP54
Code:THP.112.A3A
General Information
| Mounting Type | Joint connector (re-usable/re-accessible) |
|---|---|
| Product configuration |
In-line connector *Fixing accessories to be ordered separately
|
| Color | Black (Plastic components) - Techno green (Rubber components) |
| Overall dimensions (mm) | 21.2 x 46.3 x 12.6 |
Electric Data
| Number of connected cables | 2 |
|---|---|
| Electrical Wiring Diagram | Power/Signal |
| Rated current (AC/DC) | 17.5A |
| Rated voltage (AC/DC) | 450V AC |
| Pulse Withstand Voltage | 6 kV |
| No. poles | 3 |
| Labeling | 1-3-E |
| Terminal Connections | Screwless |
| Terminations |
Piercing screw *Male crimp are installed in the connector. Female crimp to be ordered separately. The piercing solution is ideal for PVC, Neoprene and FEP cables
|
| Thread/Tightening Torque | M3 - 1.0 Nm |
Connection Data
| Cross-sectional area of a stranded conductor without a ferrule, min. (mm²) | 0.50 |
|---|---|
| Cross-sectional area of a multi-strand conductor without a ferrule, max. (mm²) | 1.05 |
| Recommended Cable Types | H05xxx/H07xxx |
Environmental Conditions
| IP Protection Rating | IP54 |
|---|---|
| Salt Mist | Salt mist test : EN60068-2-11:2000 |
| T marking | Т 125°C |
| Evidence Tracking Index (PTI) | PTI 250 |
Materials
| Exterior Body | Photopolymer resin |
|---|---|
| O-Rings Material | TPE |
| Gasket Material | TPE |
| Impulse withstand category | ІІІ |
| Pollution Degree | 2 |
| Material Property | Halogen Free - Silicon Free |
| Contact Material | Brass |
| Contact Screw Material | Steel |
Product Compliances
| Complies with product certification requirements | EN 61984:2009 |
|---|
