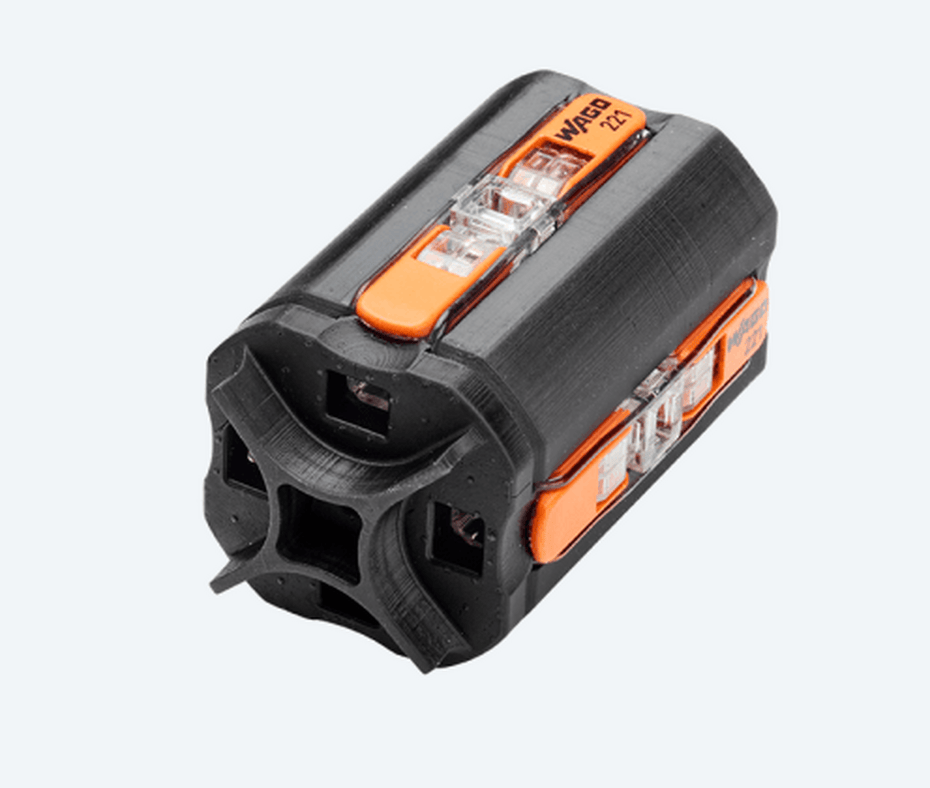

Screwless Terminal block 4p (3D Printed)
Code: 6DB088500
Screwless Terminal block 4p (3D Printed)
Code: 6DB088500
General Information
| Mounting Type | Joint connector (re-usable/re-accessible) |
|---|---|
| Product configuration |

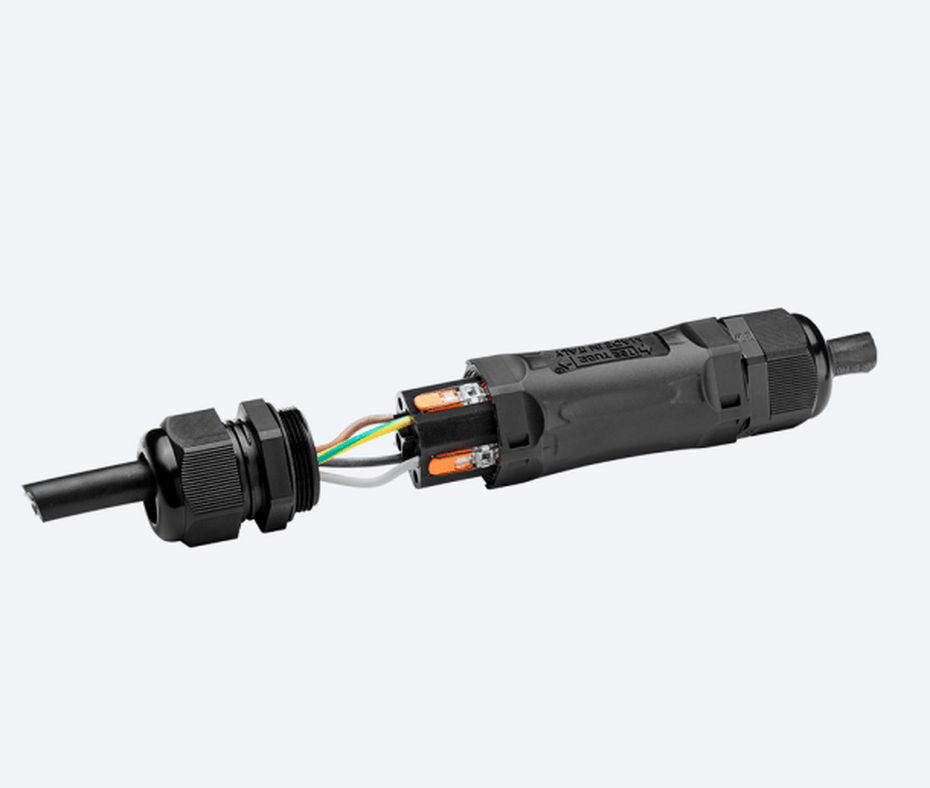

In-line connector *WAGO 221-2411: Spring terminals included in the kit
|
| Color | Black |
Electric Data
| General note |
*The electrical data indicated refers to the WAGO 221-2411 connector
|
|---|---|
| Number of connected cables | 2 |
| Rated current (AC/DC) | 32A |
| Rated voltage (AC/DC) | 450В |
| Pulse Withstand Voltage | 4kV |
| No. poles | 4 |
| Labeling | 1-3-E |
| Terminal Connections | Screwless |
Connection Data
| General note |
*The electrical data indicated refers to the WAGO 221-2411 connector
|
|---|---|
| Cross-sectional area of a stranded conductor without a ferrule, min. (mm²) | 0.14 |
| Cross-sectional area of a multi-strand conductor without a ferrule, max. (mm²) | 4.00 |
| Solid conductor cross-section MIN (mm²) | 0.14 |
| Solid conductor cross-section MAX (mm²) | 4.00 |
| Conductor stripping length (mm) | 15.00 |
Environmental Conditions
| Maximum operating temperature |
+63°C *Products manufactured using 3D printing (Additive Manufacturing) are designed and guaranteed for general professional use. However, they are not certified or intended for specific applications, nor for installation in outdoor environments or under particularly harsh conditions (e.g., prolonged exposure to UV rays, chemicals, humidity, or extreme temperatures). Upon request, specific versions of the products can be supplied, better suited for advanced professional contexts and outdoor use. For special requirements or applications in critical environments, a technical evaluation and a customized quotation can be provided to ensure the required performance and reliability.
|
|---|
Materials
| Exterior Body | Photopolymer resin |
|---|---|
| Connector | WAGO 221-2411 |
| Impulse withstand category | ІІ |
| Pollution Degree | 2 |
| Material Property | Halogen Free - Silicon Free |
| Spring terminations | WAGO 221-2411 |
