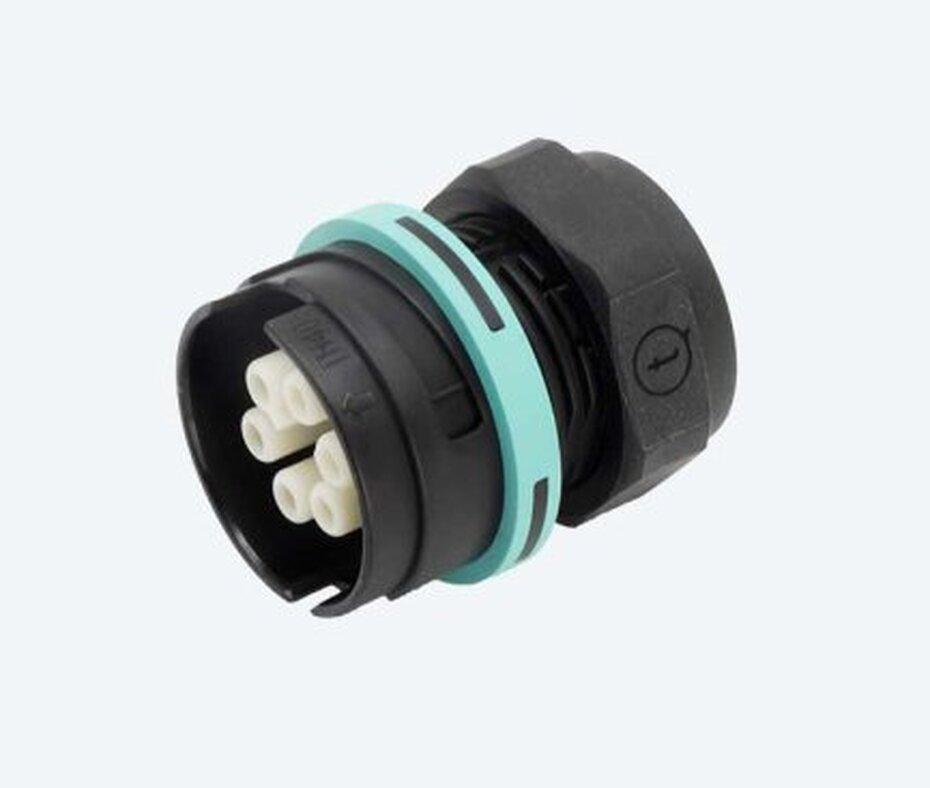

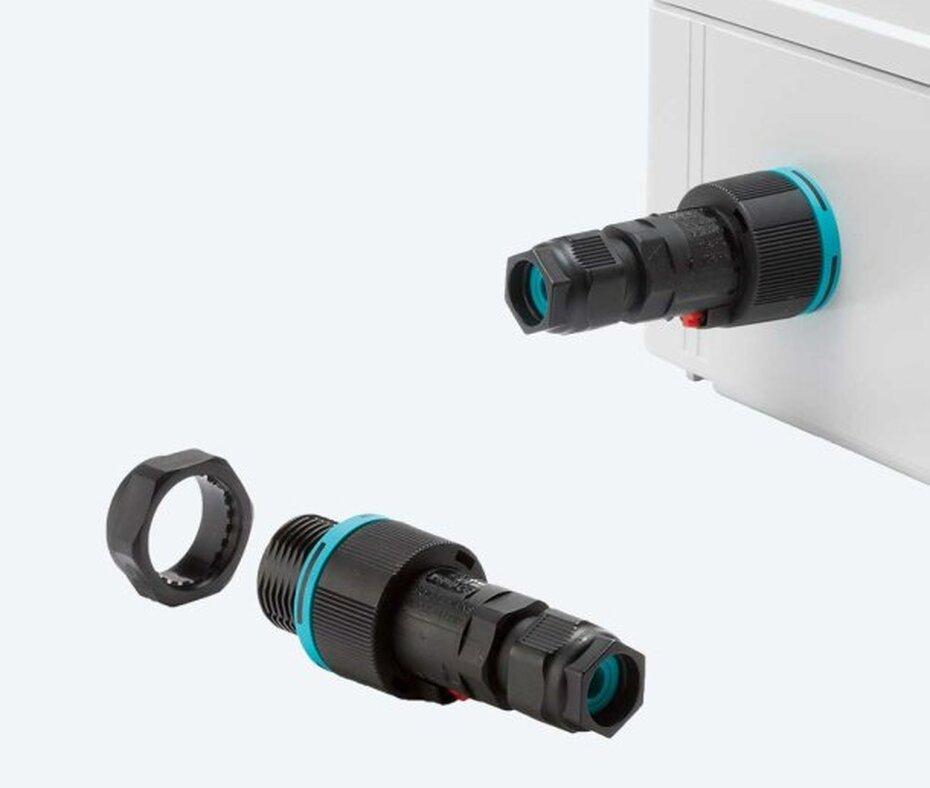

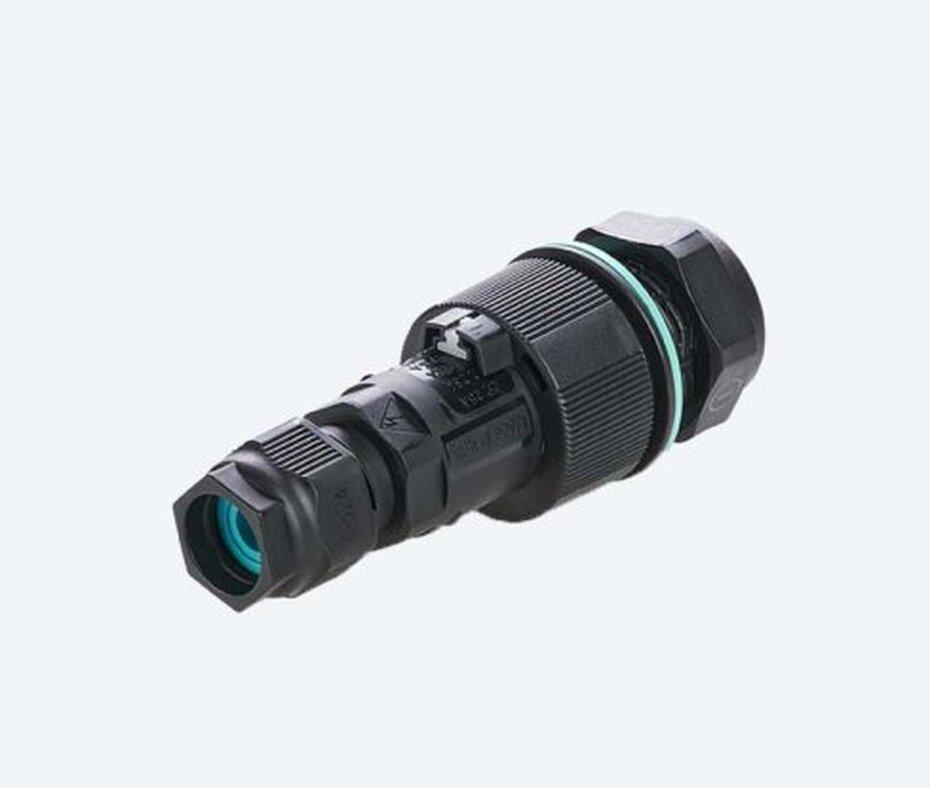

Socket connector panel-mounted 6p Screw M28 IP68
Code:THB.406.C1E
Socket connector panel-mounted 6p Screw M28 IP68
Code:THB.406.C1E
General Information
| Product configuration | Panel nut mounting socket |
|---|---|
| Locking Mechanism | Bayonet |
| Color | Black (Plastic components) - Techno green (Rubber components) |
| Type of pannel | Conductive panel |
| Panel nut thread | М28 |
| Panel thickness (mm) | 10.00 |
| Connector Shape | Straight |
Electric Data
| Number of connected cables | 1 |
|---|---|
| Electrical Wiring Diagram | Power/Signal |
| Rated current (AC/DC) | 17..5 А |
| Rated voltage (AC/DC) | 400V AC |
| Pulse Withstand Voltage | 6kV |
| No. poles | 6 |
| Labeling | 1-2-3-LNE |
| Terminal Connections | Screw |
| Thread/Tightening Torque | M3 - 0.8 Nm |
Connection Data
| Cross-sectional area of a stranded conductor without a ferrule, min. (mm²) | 0.5 |
|---|---|
| Cross-sectional area of a multi-strand conductor without a ferrule, max. (mm²) | 1.50 |
| Cross-sectional area of solid conductor, min. (mm²) | 05 |
| Maximum cross-sectional area of a solid conductor (mm²) | 1.50 |
| Conductor stripping length (mm) | 6.00 |
| Recommended Cable Types | H05xxx/H07xxx |
| Tightening torque for the panel nut | 2.0 Nm |
Environmental Conditions
| IP Protection Rating |
IP68 *IP68 (10m/1h)
|
|---|---|
| IK rating | IK08 |
| Salt Mist | |
| Mating cycles | 1000 |
| Min. / Max. ambient temperature (in accordance with EN 61984/EN 60998/EN 62444) | -40°C/+125°C |
| Maximum operating temperature | +60°C |
| Evidence Tracking Index (PTI) | PTI 175 |
Materials
| Exterior Body | PA66 UL94 V2 |
|---|---|
| Connector | PA66 GF UL94 V0 |
| Cable gland | PA66 UL94 V2 |
| O-Rings Material | TPE |
| Impulse withstand category | ІІ |
| Pollution Degree | 2 |
| Material Property | Halogen Free - Silicone Free |
| Contact Material | Brass |
| Contact Screw Material | Steel |
