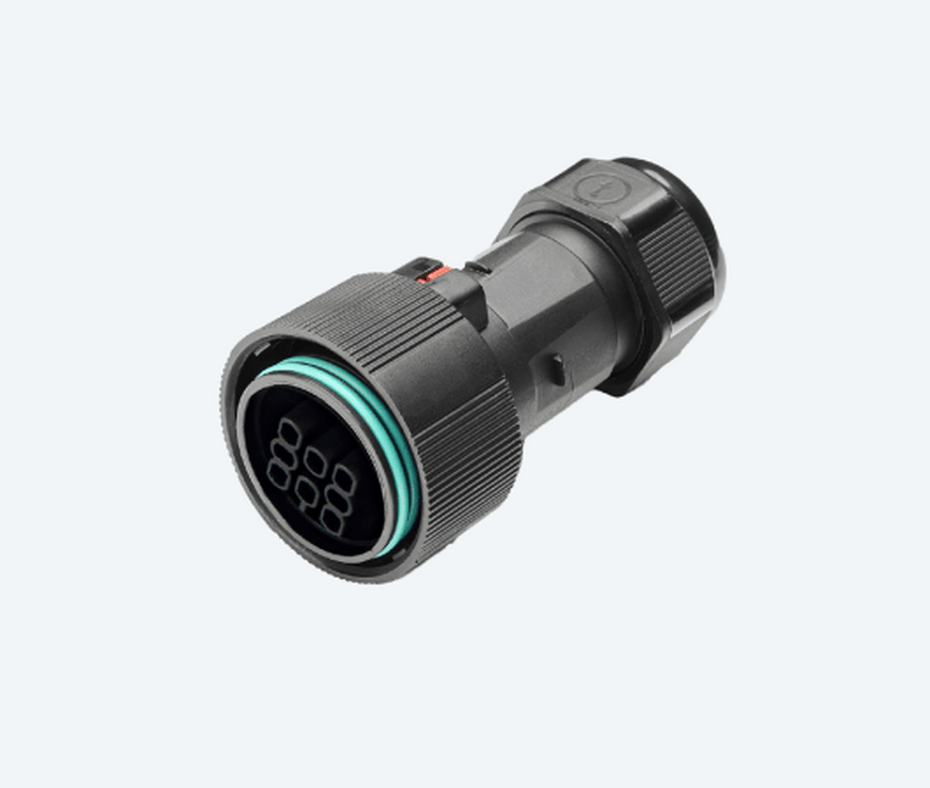

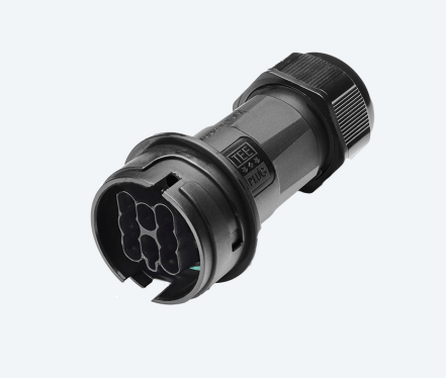

Socket Connector 8p Screw D10-16.5 IP66/IP68 UP
Code:THB.405.B8EU
Socket Connector 8p Screw D10-16.5 IP66/IP68 UP
Code:THB.405.B8EU
General Information
| Product configuration | Socket connector |
|---|---|
| Locking Mechanism | Bayonet Lock |
| Overall dimensions (mm) | Ø 38,0 x 76 |
| Overall dimensions when mated together (mm) | Ø 38,0 x 139 |
| Color | Black (Plastic components) - Techno green (Rubber components) |
Electric Data
| Number of connected cables | 1 |
|---|---|
| Electrical Wiring Diagram | Power/Signal |
| Rated current (AC/DC) | 10A AC/DC |
| Rated voltage (AC/DC) | 400V AC (60V DC) |
| Pulse Withstand Voltage | 2.5kV |
| No. poles | 8 |
| Labeling | 1-2-3-4-5-6-7-E |
| Terminal Connections | Screw |
| Thread/Tightening Torque | torque M2 - 0.2 Nm |
Connection Data
| Cross-sectional area of a stranded conductor without a ferrule, min. (mm²) | 0.25 |
|---|---|
| Cross-sectional area of a multi-strand conductor without a ferrule, max. (mm²) | 1.00 |
| Cross-sectional area of solid conductor, min. (mm²) | 0.25 |
| Maximum cross-sectional area of a solid conductor (mm²) | 1.00 |
| Conductor stripping length (mm) | 6.00 |
| Length of cable jacket strip (mm) | 35.00 |
| Recommended Cable Types | H05xxx/H07xxx |
| Cable diameter MIN (mm) | 10.00 |
| Cable diameter MAX (mm) | 16.50 |
| Tightening torque for the panel nut | 2.5 Nm |
Environmental Conditions
| IP Protection Rating |
IP66, IP68 *IP68 (5m/1h)
|
|---|---|
| IK rating |
IK08 *IK08 is for linear configuration with plug and socket
|
| Salt Mist | Salt mist test : EN60068-2-11:2000 |
| Mating cycles | 1000 |
| Min. / Max. ambient temperature (in accordance with EN 61984/EN 60998/EN 62444) | -40°C/+125°C |
| Maximum operating temperature | +70°C |
| Evidence Tracking Index (PTI) | PTI 175 |
Materials
| Exterior Body | PA66 UL94 V0 |
|---|---|
| Connector | PA66 GF UL94 V0 |
| Cable gland | PA66 UL94 V0 |
| O-Rings Material | Silicone |
| Gasket Material | Silicone |
| Impulse withstand category | ІІ |
| Pollution Degree | 3 |
| Material Property | Halogen Free |
| Contact Material | Brass silver plated |
| Contact Screw Material | Steel |
