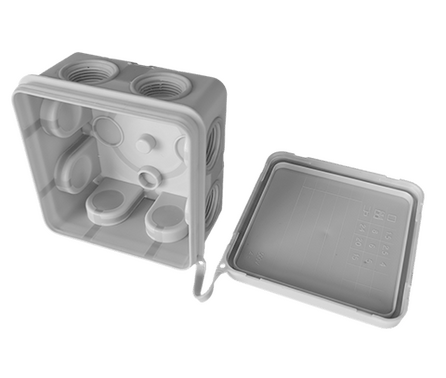

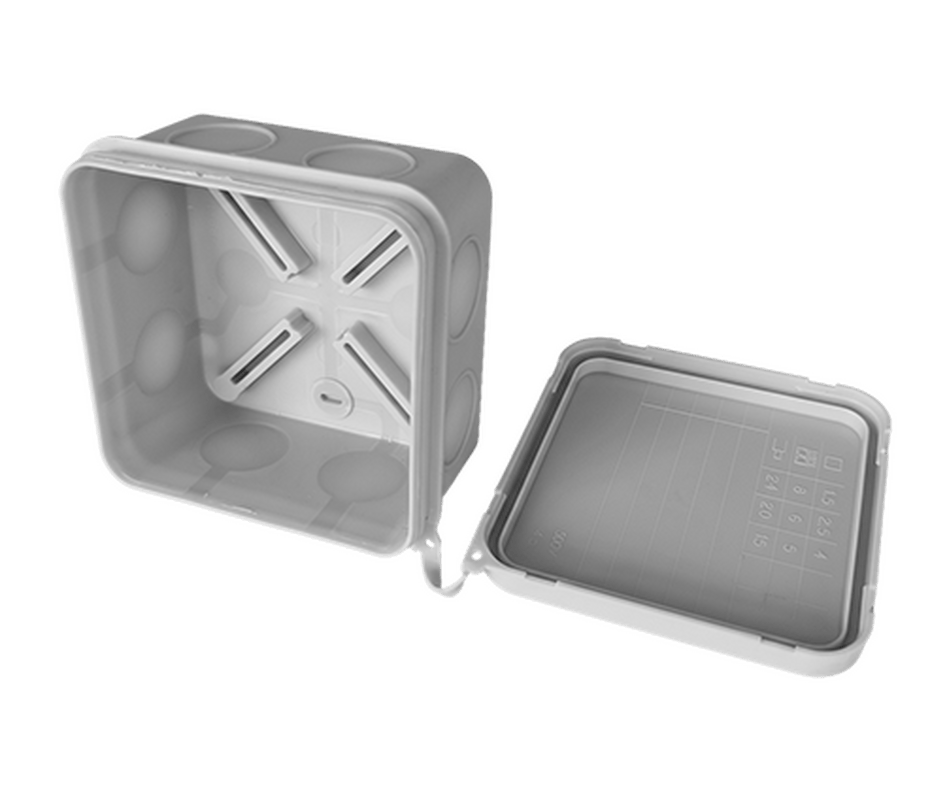

Junction Box with 8 Entries, IP65, 80×80×45.5 mm
Code:F80
Junction Box with 8 Entries, IP65, 80×80×45.5 mm
Code:F80
| Manufacturer | JSL |
|---|---|
| Material | Thermoplastic |
| Material Property | Halogen-free |
| Self-extinguishing class | V0 |
| Glow-wire test | 750 °C |
| Maximum operating temperature |
60 °C *min. -5 °C
|
| Overall dimensions (mm) | 80 × 80 × 45,5 |
| IP Protection Rating | IP65 |
| IK rating | IK08 |
| Cable Gland Compatibility | M16, M20, М25 |
| Number of connected cables | 8+2 |
| Connection Type | Membrane |
| REACH compliance | + |
| RoHS compliance | + |
| KEMA-KEUR certification | + |
