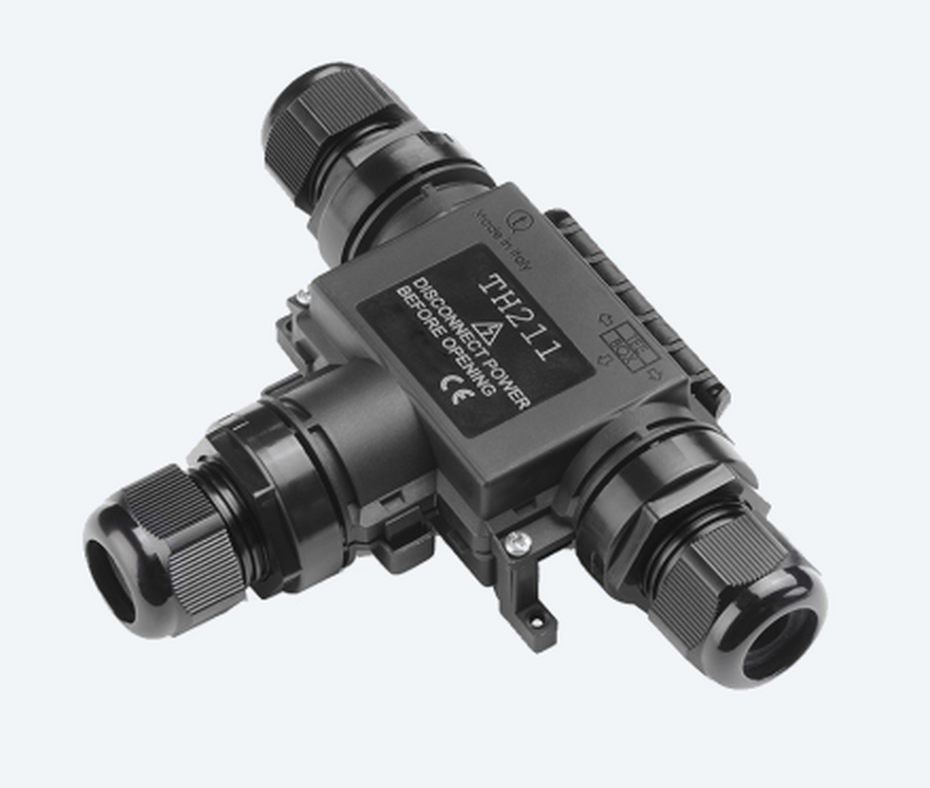

Junction box 3 ways without terminal block IP40 D8-17
Code:THA.211.A1B
Junction box 3 ways without terminal block IP40 D8-17
Code:THA.211.A1B
General Information
| Mounting Type | Joint connector (re-usable/re-accessible) |
|---|---|
| Product configuration |
Junction connector *Cable accessories and terminal block to be ordered separately
|
| Overall dimensions (mm) | 137,0 x 118,0 x 36,0 |
| Inner dimensions (mm) | 58.0 x 45.0 x 27.0 |
| Color | Black |
Electric Data
| Number of connected cables | 3 |
|---|
Connection Data
| Main cable sheath stripping length (mm) | 30.00 |
|---|---|
| Branch cable sheath stripping length (mm) | 30.00 |
| Recommended Cable Types | H05xxx/H07xxx |
| Cable diameter MIN (mm) | 8.00 |
| Cable diameter MAX (mm) | 17.00 |
| Tightening torque for the connector panel adapter | 4 Nm |
| Tightening torque for the panel nut | 1.0 Nm |
Environmental Conditions
| IP Protection Rating | IP40 |
|---|---|
| Salt Mist | Salt mist test : EN60068-2-11:2000 |
| Min. / Max. ambient temperature (in accordance with EN 61984/EN 60998/EN 62444) | -40°C/+60°C |
Materials
| Exterior Body | PA66 UL94 V2 |
|---|---|
| O-Rings Material | TPE |
| Gasket Material | TPE |
| Material Property | Halogen Free - Silicone Free |
| Contact Screw Material | Steel |
Product Compliances
| Complies with product certification requirements | EN 60529:1991 - EN 60998-1:2004 |
|---|
