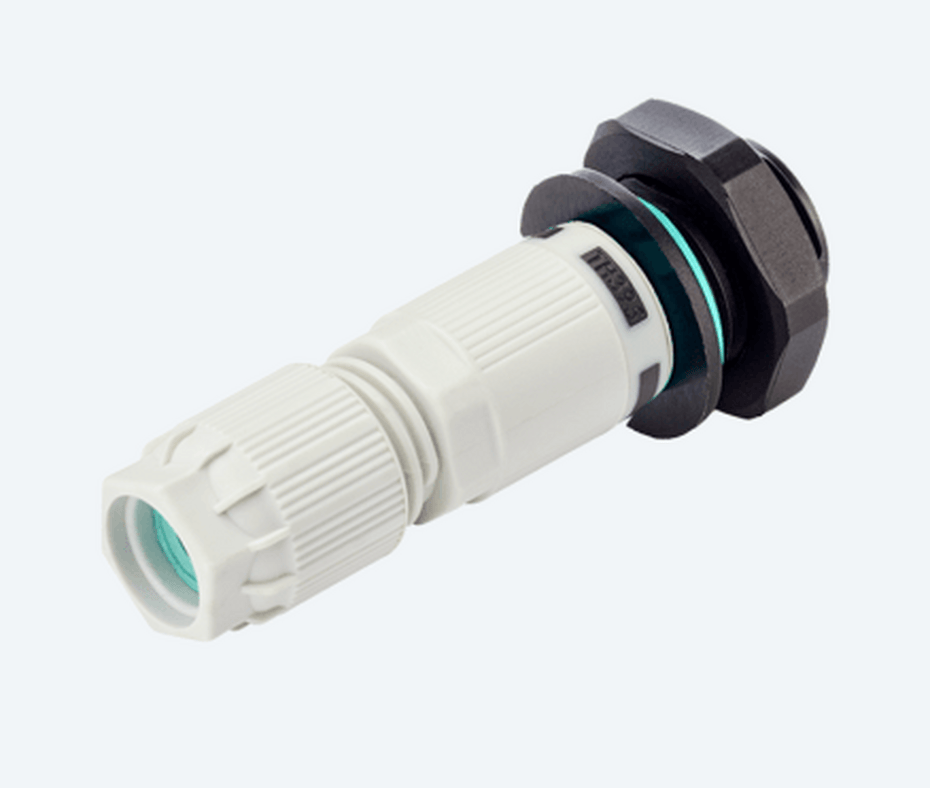

Micro Joint panel-mounted Connector M16 2p screw grey 1-2 IP66/IP68
Code:THB.395.N2A.CG
Micro Joint panel-mounted Connector M16 2p screw grey 1-2 IP66/IP68
Code:THB.395.N2A.CG
General Information
| Mounting Type | Joint connector (re-usable/re-accessible) |
|---|---|
| Product configuration |
Panel-mount connector (rear nut) *Fixing nut included in the kit
|
| Color | Black/Grey Ral 7035 (Plastic components) - Techno green (Rubber components) |
| Overall dimensions (mm) | Ø14.0 x 42.5 |
| Type of pannel | Conductive panel |
| Panel nut thread | M16 |
| Panel thickness (mm) | 7.00 |
| Connector Shape | Straight |
Electric Data
| Number of connected cables | 2 |
|---|---|
| Circuit Connection Diagram | Signal |
| Rated current (AC/DC) | 10A |
| Rated voltage (AC/DC) | 500V AC (3V-60V DC) |
| No. poles | 2 |
| Labeling | 1-2 |
| Wiring method | Screw |
| Thread/Tightening Torque | M2 - 0.2 Nm |
Connection Data
| Cross-sectional area of a stranded conductor without a ferrule, min. (mm²) | 0,25 |
|---|---|
| Cross-sectional area of a multi-strand conductor without a ferrule, max. (mm²) | 1.50 |
| Cross-sectional area of solid conductor, min. (mm²) | 0,25 |
| Maximum cross-sectional area of a solid conductor (mm²) | 1.50 |
| Conductor stripping length (mm) | 8.00 |
| Length of cable jacket strip (mm) | 20.00 |
| Cable diameter MIN (mm) | 5.40 |
| Cable diameter MAX (mm) | 7.90 |
| Tightening torque of cable gland-connector | 1.0 Nm |
| Tightening torque of nut-cable gland | 1.5 Nm |
Environment Conditions
| IP Protection Rating |
IP66, IP68 *IP68 (2m/24h)
|
|---|---|
| Salt Mist | Salt mist test : EN60068-2-11:2000 |
| T marking | T 85°C |
| Evidence Tracking Index (PTI) |
Materials
| Connector | PA66 GF UL94 V0 |
|---|---|
| Cable gland | PA68 UL94 V0 |
| O-Rings Material | TPE |
| Gasket Material | TPE |
| Material Property | Halogen Free - Silicone Free |
| Contact Material | Brass |
| Contact Screw Material | Steel |
Product Compliances
| Complies with product certification requirements | EN 60998-1:2004 |
|---|
