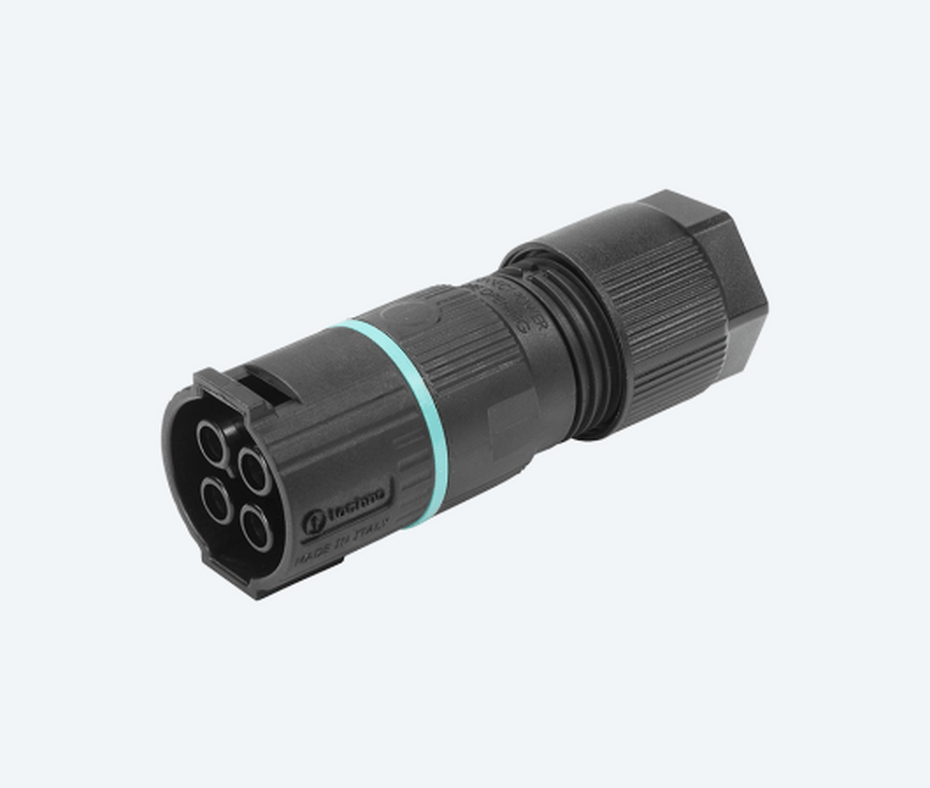

Mini Socket Connector self-lock 4p Screw D7-13 IP66/IP68 UP
Code:THB.389.C4EU
Mini Socket Connector self-lock 4p Screw D7-13 IP66/IP68 UP
Code:THB.389.C4EU
General Information
| Product configuration | Panel nut mounting socket |
|---|---|
| Locking Mechanism |
Push-lock *unlocking by tool
|
| Mounting Type | Cable Mount |
| Overall dimensions (mm) | Ø 23,0 x 74,0 |
| Overall dimensions when mated together (mm) | Ø 23,0 x 130,0 |
| Complies with product certification requirements | Compliance to EN61535 |
| Connection Type | Cable-to-Cable |
| Operating Conditions | Waterproof |
| Color | Black |
Electric Data
| Number of connected cables | 1 |
|---|---|
| Electrical Wiring Diagram | Power/Signal |
| Rated current (AC/DC) | 25A |
| Rated voltage (AC/DC) | 630В AC |
| Pulse Withstand Voltage | 4kV |
| No. poles | 4 |
| Labeling | 1-2-3-E |
| Terminal Connections | Screw |
| Thread/Tightening Torque | M3 - 0.8 Nm |
Connection Data
| Cross-sectional area of a stranded conductor without a ferrule, min. (mm²) | 0.50 |
|---|---|
| Cross-sectional area of a multi-strand conductor without a ferrule, max. (mm²) |
2.50 *Cable sections up to 4 mm2 accepted according to indicated electrical and technical parameters
|
| Cross-sectional area of solid conductor, min. (mm²) | 0.50 |
| Maximum cross-sectional area of a solid conductor (mm²) | 2.50 |
| Conductor stripping length (mm) | 6.00 |
| Length of cable jacket strip (mm) | 25.00 |
| Recommended Cable Types | H05xxx/H07xxx |
| Cable diameter MIN (mm) | 7.00 |
| Cable diameter MAX (mm) | 13.00 |
| Tightening torque for the panel nut | 2.5 Nm |
Environmental Conditions
| IP Protection Rating |
IP66, IP68 *IP68 (5m/1h)
|
|---|---|
| IK rating | ІК08 |
| Salt Mist | Salt mist test : EN60068-2-11:2000 |
| Min. / Max. ambient temperature (in accordance with EN 61984/EN 60998/EN 62444) | -40°C/+125°C |
| Maximum operating temperature | +70°C |
| Evidence Tracking Index (PTI) | PTI 175 |
Materials
| Connector | PA66 GF UL94 V0 |
|---|---|
| Cable gland | PA66 UL94 V2 |
| O-Rings Material | Silicone |
| Gasket Material | Silicone |
| Impulse withstand category | ІІ |
| Pollution Degree | 2 |
| Material Property | Halogen Free |
| Contact Material | Brass |
| Contact Screw Material | Steel |
