Techno TH212 Junction Boxes — Compact IP66/IP67 Solution for Electrical Installations
Italian manufacturer Techno developed the compact TH212 junction box series for connecting and housing electrical and electronic components in industrial, infrastructure and outdoor applications.

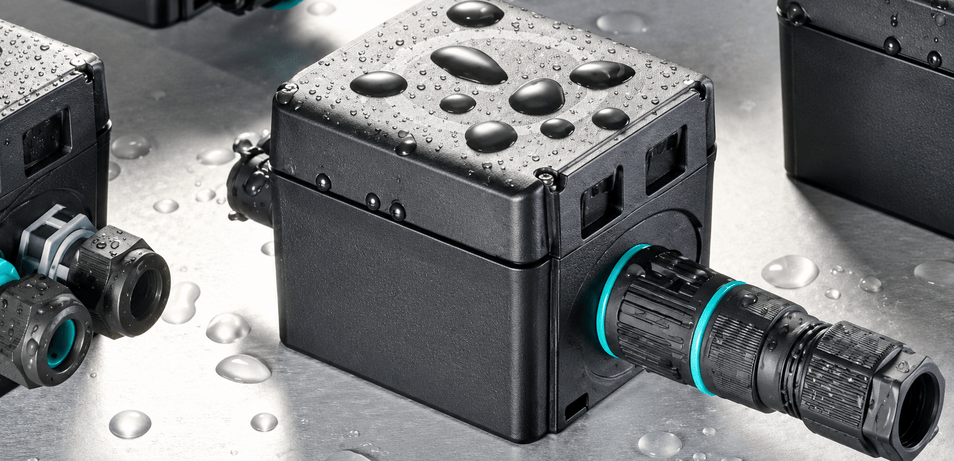

One of the key features of the series is quick access to the enclosure. The IP66 version uses a special clip-locking cover that requires no screws or tools. For applications requiring IP67 protection, a version with additional screw fastening of the cover is available.

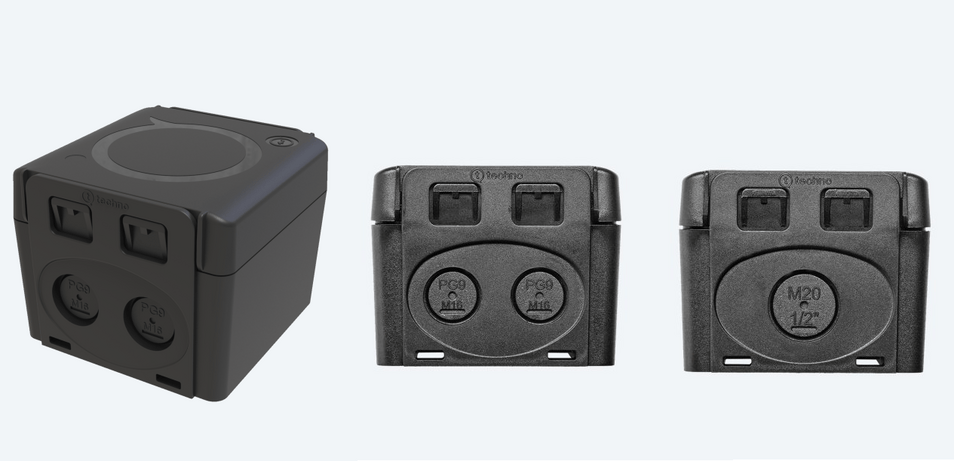

The junction boxes feature compact external dimensions of 72 × 75 × 57 mm, an IK08 impact protection rating and a halogen-free PC/ABS UL94 V0 enclosure. Pre-configured M16 and M20 knockouts allow the box to be adapted to specific installation requirements.

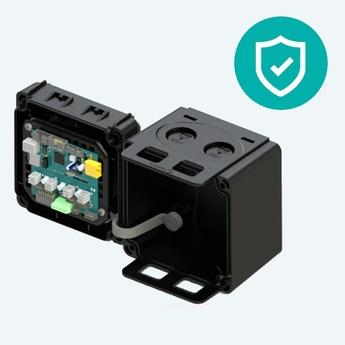

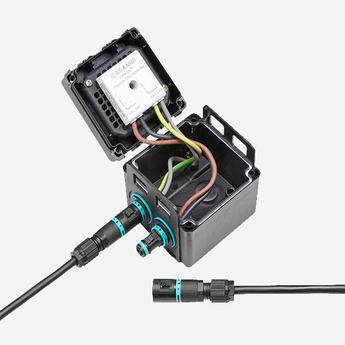

The TH212 series is available with 5 or 6 connection points. Its design allows the installation of cable glands, connectors, terminal and electronic modules, sensors and other components. The boxes can be installed on horizontal and vertical surfaces, panels and poles.
With its compact dimensions, high protection rating and flexible configuration options, the Techno TH212 is suitable for automation systems, lighting, industrial equipment and other electrical applications.
